Frome, Somerset · UK-wide

3D Scanning Service

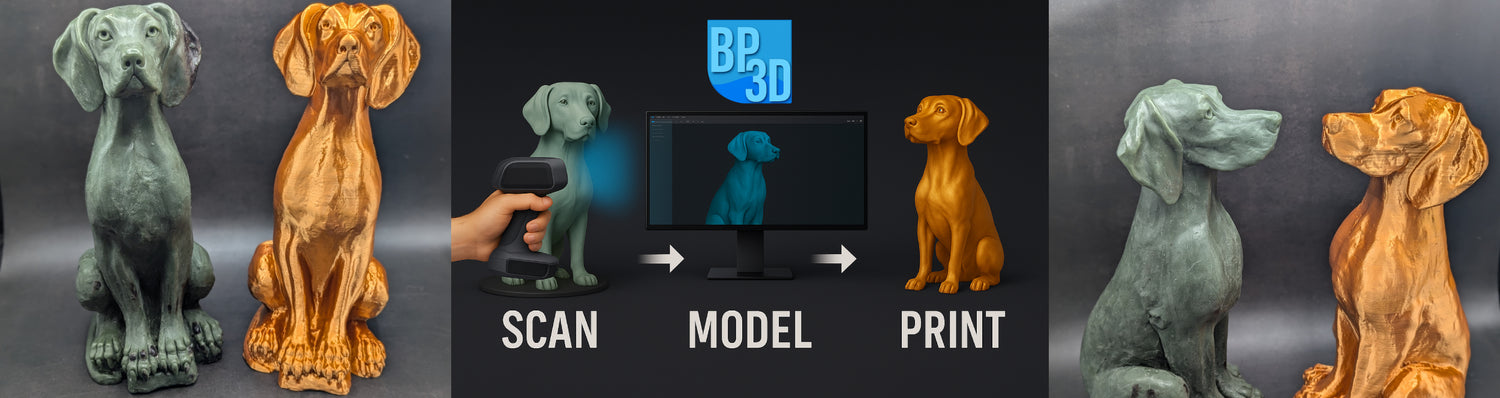

Here at BP3D, I scan sculptures, museum artefacts and mechanical parts to create digital models for reproduction, prototyping and manufacture. I work from my studio in Frome, Somerset, and travel on-site anywhere in the UK with my scanning equipment.

What you need from the scan shapes how I approach the job. For a sculptor, that might mean producing a smaller master for bronze casting. For a museum, it might mean creating a replica visitors can explore by touch. For a designer, it could mean capturing the shape of an existing part so a new prototype fits around it.

On-site 3D scanning at Abbey Road Studios, with tracking markers on a Studer tape recorder and a handheld scanner and laptop beside it.

What are you working on?

Artists & Sculptors

Digitise a sculpture while retaining the surface texture and modelling marks of the original. Use the model to archive your work, produce an edition at a different scale or make a master for casting.

Explore scanning for artists and sculptors  Original two-figure sculpture on the left and its blue 3D scan on the right, showing the figures’ poses and sculpted surface detail.

Museums & Heritage

Create a digital record of an artefact, a handling replica for visitors or a reference for restoration. For fragile objects and collections that can’t be moved, I travel on-site to scan them where they’re held.

Explore museum and heritage scanning  Will Perry scans a Welsh harp at y Gaer in Brecon. Blue 3D scan views show its carved details beside the finished resin handling replica.

Product Design & Manufacturing

Capture an existing component when there’s no drawing or CAD file. Its shape can provide the reference for a replacement part, a prototype that fits around it or a pattern for manufacture.

Explore product design and manufacturing  Original Garador garage door clip beside a 3D printed replacement on the left, with the finished batch of black clips on the right.

What can you make from a scan?

A sculpture at a different scale

A sculptor might want a desktop edition of a full-size bust or need to see how a small clay study reads at a larger size. I scan the original and scale the digital model to an agreed height, keeping its proportions. A print at the new size lets you judge the silhouette, texture and finer features before committing to an edition.

Explore scanning for artists and sculptors  Carved sculpture and printed replicas at different scales.

A replacement for a discontinued part

A boat owner came to me with a broken compass bezel after the manufacturer could no longer supply a spare. I scanned the original, advised on a material suited to sunlight and printed replacement bezels. On a separate automotive project, I scanned a car stereo surround and supplied the replacement in nylon.

If you have a damaged original, an intact matching part or an assembly the replacement needs to fit, send photos showing how the pieces go together. That’s often more useful than a photo of the broken part alone.

Explore replacement parts and repairs  Discontinued plastic parts beside their printed replacements.

A master for mould making or casting

Say you’ve sculpted a piece in clay and want a smaller edition cast in bronze. I can scan the sculpture, reduce the digital model to the agreed size and produce a physical master. Your mould maker can take a mould from that master while the original stays in your studio.

The same approach can be used for plaster or resin editions, or to produce a pattern for metal casting. If you already have a mould maker or foundry, I can work to their requirements for dimensions, surface finish and any casting allowance.

Explore foundries, casting and mould making  An anatomical ear model beside its grey mould master, with a close-up of the surface detail.

A missing detail for a restoration

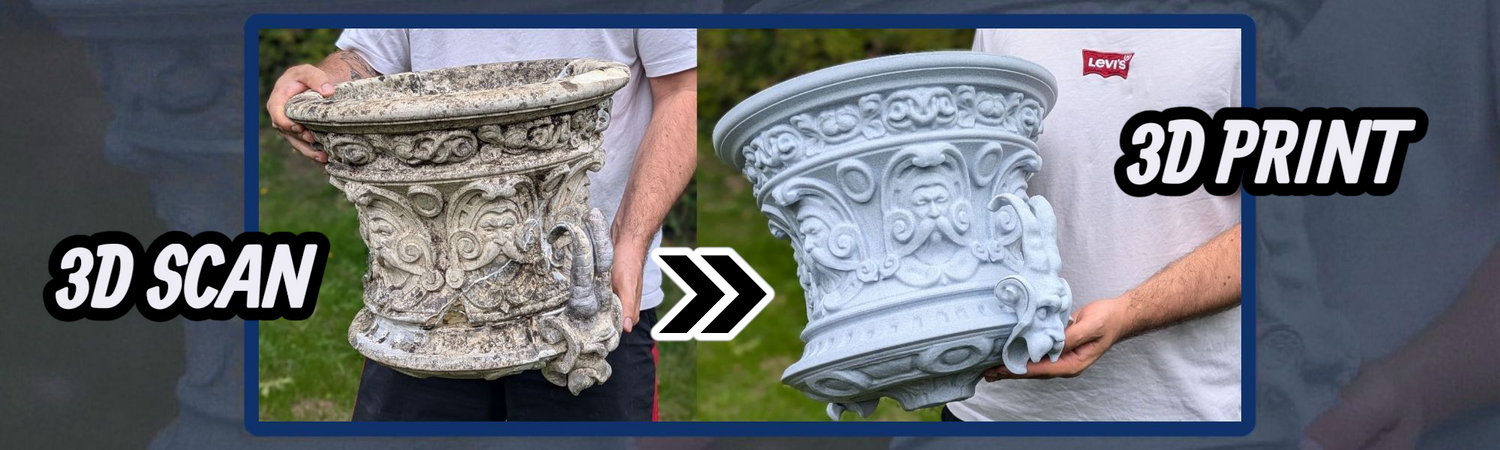

An intact feature elsewhere on an object can provide a reference for a missing one. Scanning records the surviving profile and decoration so the replacement can follow the original form. On a 19th-century fountain restoration, I used scanning and 3D printing to recreate historic detail. Depending on the repair, the printed piece can serve as the replacement itself or as a master for casting in another material.

Damaged fountain with cracks through its carved faces and scrollwork, beside the unpainted 3D-printed replica showing the missing detail restored.

An editable CAD model of an existing component

You might have a component that fits well but need to move a fixing hole, change a wall thickness or adapt it for a different assembly. A scan records the existing shape. Where editable CAD is needed, the relevant features can then be rebuilt against that reference and checked against the dimensions that matter. If your manufacturer has requested a STEP file, I can assess the part with that requirement in mind.

Explore product design and manufacturing  Three wireframe views of the scanned component show the central opening, four fixing holes and the mesh around a curved edge.

A handling replica for a museum collection

Some objects are too fragile to pass around; others are simply too small for visitors to feel the detail. For y Gaer in Brecon, I produced a railway button at its original size and at twice the scale. Visitors could hold one to understand how small it was, then use the other to explore the raised design with their fingertips.

See the Powys museum handling replicas  A Welsh harp being scanned, the blue digital scan and the finished museum handling replica.

A keepsake from a one-off impression

A customer brought me a paw impression of their dog that they wanted to preserve. Scanning is particularly useful for an object like this: the shallow pad marks and the spaces between them are what make that particular impression recognisable. A digital model gives you a way to make a physical copy while keeping the original, and to make another later for someone else in the family.

The original paw impression, its blue digital relief and the finished black keepsake.

Featured project

17 handling replicas for y Gaer Museum

The finished resin replicas in hand.

Powys County Council wanted blind and partially sighted visitors to explore objects from its collection through touch. I travelled on-site to Powys Archives and y Gaer in Brecon to scan objects ranging from delicate wax seals, still attached to historic documents, to a 1.8-metre Welsh harp.

I captured the harp in ten overlapping scans and produced a resin replica around 30 cm tall, small enough for a visitor to trace the whole instrument with their hands. The railway button called for the opposite approach: I supplied one replica at its actual size and another at twice the scale so visitors could feel the raised design more easily.

See the original artefacts, finished replicas and visitor feedback in the Powys case study

What will you receive?

A digital model

A cleaned and scaled record of the object’s surface, typically supplied as an STL or OBJ. Choose this if you want to archive a sculpture, reproduce a form or give a designer a reference to work from.

A file prepared for design or manufacture

If you need editable CAD, a revised profile or new fixing points, I agree that work with you separately. A scan records the existing surface; rebuilding a feature in CAD lets you change its dimensions. If a manufacturer has requested a particular file or specification, include it when you enquire.

A physical piece

I can supply a prototype for testing, a finished replica or a master for casting. The intended use determines the preparation: a prototype needs to prove the fit, while a casting master needs the surface finish you want the mould to reproduce.

    Studio scanning in Frome

    Smaller sculptures, components and prototypes can be scanned at my Frome studio. Send photos and approximate dimensions before arranging delivery so I can assess the object and advise on the next step.

    Map showing Frome, Somerset, in relation to Bath, Bristol and the surrounding towns.

    On-site scanning across the UK

    For large sculptures, fragile collections and installed equipment, I travel on-site anywhere in the UK with my scanning equipment.

    Include the location, a photo of the object in position and any access or handling restrictions. That helps me plan around the space available and identify which surfaces I can reach.

    Will Perry kneels beside a Welsh harp at y Gaer in Brecon, aiming a handheld 3D scanner at its carved column.

    Have an object in mind?

    Send a few photos, the approximate size and what you need at the end. That could be as straightforward as “I need another one of these” or as specific as a foundry’s pattern requirements. I’ll advise what can be captured, what further work is needed and what I can supply.
